EXTRALINK CAT6 FTP

Copper twisted pair cat. 6 F/UTP 4PR 23/1 water resistant cable for outdoor applications. Four pairs of twisted copper wires, colour coded, protected with waterproof tape, screened in PE sheath. The cable complies with many standards - cabling requirements of ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-568-C.2 and cables IEC 61156-5, EN 50288-6-1.

Application of CAT.6 F/UTP 4PR 23/1 AWG PE cable

Cables in this category with moisture protection are suitable for outdoor installation in telephone ducts, collectors, and on building walls under conditions of increased electromagnetic influence. The construction of the cable, including the water blocking tape provides moisture protection in outdoor applications. The cable operates at frequencies up to 250 MHz. It is compatible with PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit/s, 100VG-AnyLAN, Fast Ethernet (100BASE-TX), Token Ring 16/100 Mbit/s, Firewire 100 Mbit/s, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, HDBaseT, PoE, PoE+, PoE++. The cable has good mechanical properties, electrical characteristics and wide operating temperature range:

• During installation, a bending radius ≥ 10 cable diameters, temperature from -15 °C to +60 °C<

• After installation, bending radius ≥ 4 cable diameters, temperature from -50 °C to +60 °C

• Tensile stress ≤ 85 N.

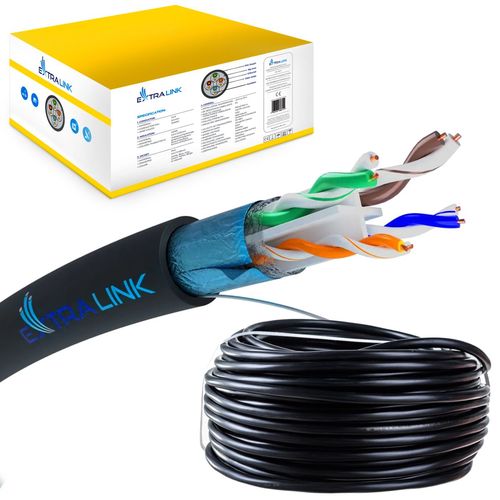

Layered F/UTP cable construction for complete protection

Thanks to its complex construction, the cable complies with cat. 6 F/UTP. Starting from the conductors, the cable with a nominal diameter of 7.8 mm consists of:

• conductor - 0.54mm diameter soft copper wire conductors - 23AWG,

• HDPE insulation, with a diameter of 1.07 mm,


• Each pair consists of two insulated wires twisted together in standard identification colours:

white-blue and blue,
white-orange and orange,
white-green and green,
white-brown and brown.

• Layer cross HDPE 4x4 mm

• Core protection layer - waterproof tape,

• Tinned copper contact wire 0.4 mm thick,

• Core shielding - screen: aluminum-polymer foil (metal outside),

• Sheath made of 0,6 mm thick PE layer.

• The cable is suitable for wide applications and ensures high resistance to water at appropriately insulated terminals.
