Coaxial Cable CB50F 250m BOX, EMOS
Tootekood: S5231S
Kättetoimetamise tähtajad
2025-01-13 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.
3,50 €
Kauba kirjeldus

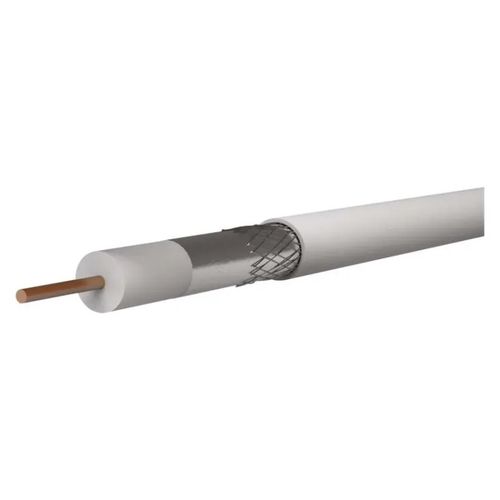

Coaxial Cable CB50F 250m BOX, EMOS
Tehnilised andmed
Tarnija toote kirjeldus
Product description
Type RG6 universal coaxial cable with central conductor made of pure bare copper, with double shielding made of tin-plated CuSn copper, white colour. The cable
is designed for all applications for transmitting TV and SAT signal in undemanding environments. Thanks to the materials used for the central conductor and braiding, the cable is extremely resistant to weather conditions, humidity and corrosion.
Tarnija toote parameetrid
Product code
S5231S
APE = air dielectric
no
capacity (pF/m)
56
coaxial cable type
CB50F
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
6.3 mm
diameter of the inner conductor
0.9 mm
dielectric type, diameter
FPE 4.4 mm
factor of shortening
0.81
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
500
intended use
indoor installation, universal cable
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
21.8
max. attenuation at 20 °C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz
7
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
32
max. attenuation at 20 °C (dB/100 m) 450 MHz
14.3
max. attenuation at 20 °C (dB/100 m) 650 MHz
17.8
max. attenuation at 20 °C (dB/100 m) 860 MHz
20.8
max. DC resistance at 20 °C (Ohm/km) - inner core
29.3
max. DC resistance at 20 °C (Ohm/km) - outer core
57.2
min. bend radius single/multiple
30/60 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
25
min. return loss at 20 °C (dB) 600 to 900 MHz
20
min. return loss at 20°C (dB) 300 to 600 MHz
23
min. shielding attenuation (dB) 10 ~ 800 MHz
75
mounting temperature
+5 °C to +60 °C
number of braiding wires
32× 0.12 mm
number of shieldings
2
packaging
250 m, reel box
PE = polyethylene dielectric
not stated
PES = layer film
yes
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7220
recommended types of connectors - F screwing
*K7331
shielding diameter
32× 0.12 mm²
shielding I. foil
1× Al
shielding II. foil
none
shielding protection
27 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–250 m
type of packaging - length
PVC reel in box, 250 m
type of packaging - type of coil
PVC
UV resistant
no
warranty period
2 years
weight (kg/km)
39.5
Brand
EMOS
Supplier's product code
S5231S
Product ID
U-2337317
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
