8 port switch Hikvision DS-3T0310HP-E/HS
Tootekood: SWITCHDS3T0310HPEHS
Foto on illustratiivne. Toote täpseid tehnilisi parameetreid vaadake kirjeldusest.
Kättetoimetamise tähtajad
2025-05-02 Kui tellite praegu on eeldatav kohaletoimetamise kuupäev
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
Pärast kauba kullerile üleandmist teavitame teid sellest e-posti teel.Tellimused üle 25,00 € toimetatakse kohale tasuta.
3,50 €
Kauba kirjeldus

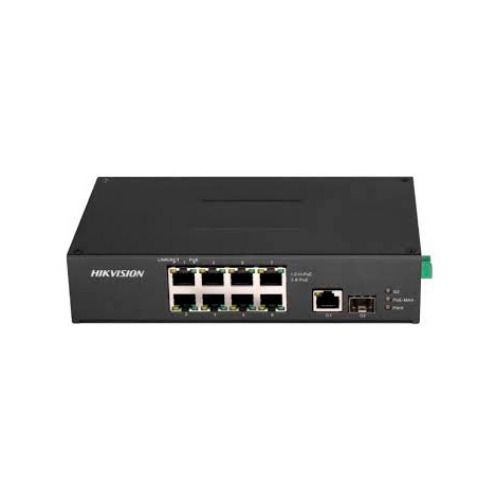

8 port switch Hikvision DS-3T0310HP-E/HS
Tehnilised andmed
Tarnija toote kirjeldus
- Type: Industrial 8-port PoE switch
- Model: Hik-vision DS-3T0310HP-E/HS
- PoE support: 802.3af/at/bt
- Ports: 8 x 100 Mbps PoE, 1 x Gigabit RJ45, 1 x GB SFP uplink
- Ports 1-2: Supports Hii-PoE up to 90 W
- Total bandwidth: 5.6 Gbps
- Switching capacity: 4.1664 Mpps
- MAC address table: 2K
- Surge protection: 6 kV
- Ports 7-8: Operating distance up to 300 m
- Operating temperature: -30°C ~ 65°C
- Maximum power consumption: 110 W
- Approval
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Dialing Function
- Long RangePorts 7 and 8: up to 300 m.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- Port IsolationPorts 1 to 8: port isolation mode to improve network security.
- General
- Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)
- Gross Weight1.24 kg (2.73 lb)
- Max. Power Consumption120 W
- Net Weight0.565 kg (1.25 lb)
- Operating Humidity5% to 95% (no condensation)
- Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
- Power Consumption in Idle< 10 W
- Power Supply48 to 57 VDC, 2.5 A Max.
- ShellMetal material, fan-free design
- Storage Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Network Parameters
- Forwarding ModeStore-and-forward switching
- Internal Cache1.5 Mbits
- MAC Address Table4 K
- Packet Forwarding Rate4.1664 Mpps
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Ports6 × 10/100 Mbps PoE ports, 2 × Hi-PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
- Ports for Long-Distance TransmissionPorts 7 and 8
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Switching Capacity5.6 Gbps
- Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- PoE Power Supply
- Max. Port PowerPorts 1 and 2: 90 WPorts 3 to 8: 30 W
- PoE PortPorts 1 to 8
- PoE Power Budget110 W
- PoE Power PinEnd-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE StandardPorts 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at
